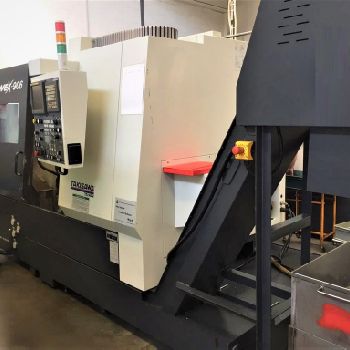

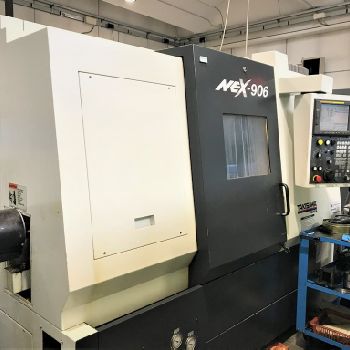

Takisawa NEX 906 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Takisawa |
| Model: | NEX 906 |
| Year of Make: | 2011 |

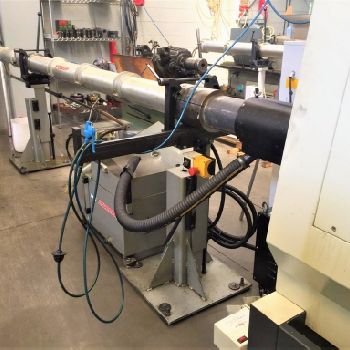

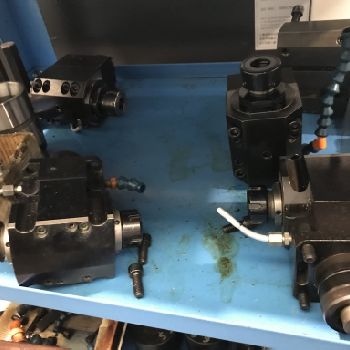

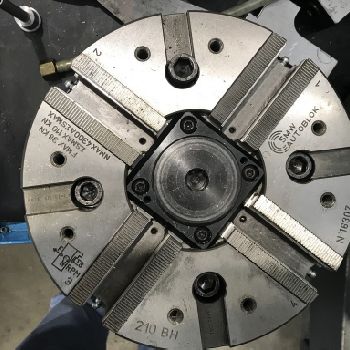

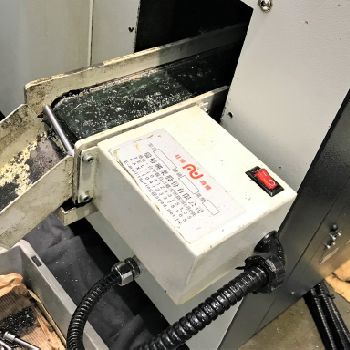

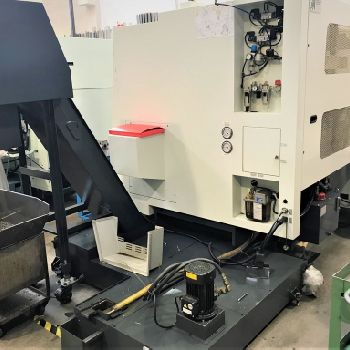

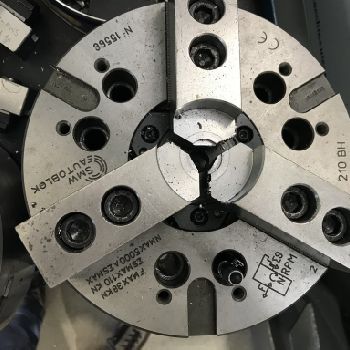

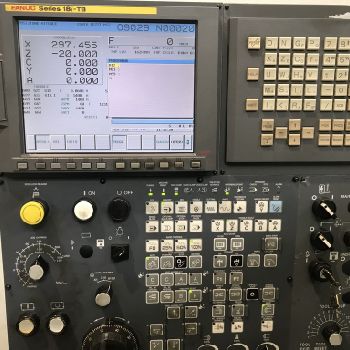

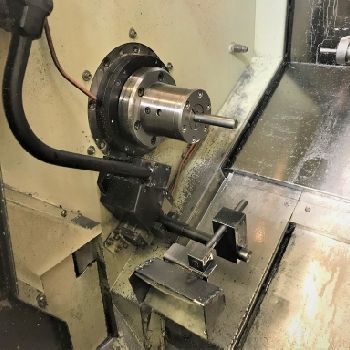

| Description: | The TAKISAWA NEX 906 counter-spindle motorized cnc lathe used is a fast CNC-controlled tilted bench with 5-axis inclination (multitasking), with ASA 6 main spindle with C axis, ASA 5 counter spindle with C axis, 12 stations motorized turret, with Y axis, FANUC 18i-TB numerical control, year of construction 2011, according to "CE standards. |It is also equipped with a double clamping unit BELLEGRANDI, double self-centering (Autoblock with 3 and 4 jaws), hand for piece unloading, tool setting and LNS HYDROBAR bar pusher. |size ASA 6 |main spindle passage 52mm |counter-spindle bar passage (ASA 5 ) 35mm |main spindle revolutions: 5,000 |secondary spindle speed: 6.000 |maximum turning length: 350mm |motorized turret with BMT connection |The equipment is completed by a set of fixed tool holders, a set of motorized tool holders (2 RADIAL, 2 AXIAL and 2 DOUBLE AXLES) and the carpet chip evacuator; |
| Technical Specifications: | Turning length: 350.0 mm Type of CNC: FANUC 18i-TB Spindle bore: 52.0 mm Number of turrets: 1.0 Number of tools on turret: 12.0 Turning speed: 5000 rpm Tailstock: yes Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: yes |
