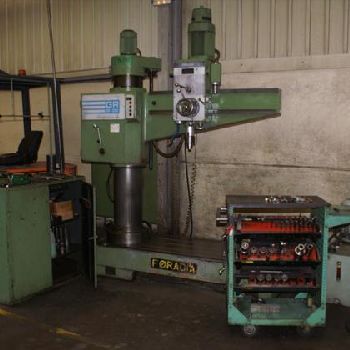

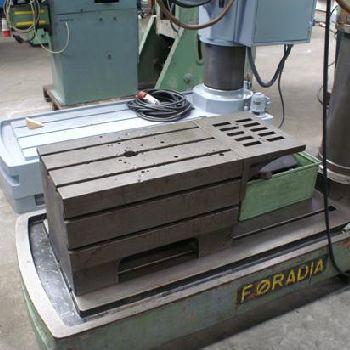

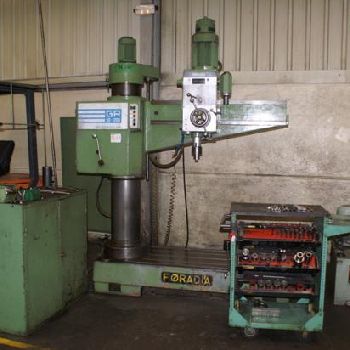

Foradia GR 50/1200 Radial drilling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Radial Drilling Machines |
| Manufacturer: | Foradia |
| Model: | GR 50/1200 |
| Description: | FORADIA RADIAL DRILL |Model GR 50/1200 |Capacities: |R 60 steel threading: 50 mm |R 25 foundry threading: 60 mm |R 60 steel boring: 90 mm |R 25 foundry boring: 100 mm |Dimensions: |Maximum radius: 1350 mm |Minimum radius: 435 mm |Head longitudinal travel: 915 mm |Arm length 1.200 mm |Maximum distance spindle-basis: 1165 mm |Spindle: |Spindle-jacket : 60-80 mm |MORSE 4 taper |Speeds: 12 from 35 to 1460 r.p.m. |Power: |Spindle motor: 3,5 HP |Elevation motor: 1,5 HP |Basis: |Useful surface (length x width):1345 x 750 mm |3 faces table 650/689 x 400 x 400 mm |Approx. net weight 2.303 kgs |Condition: Excellent |
| Technical Specifications: | Drilling Ø: 100.0 mm Table length: 1345.0 mm Table width: 750.0 mm Spindle taper: Morse 4 Head traverse: 915.0 mm Throat: 1165.0 mm Power: 3.7 kW Arm length: 1200.0 mm Length x width x height: 1345.0 mm × 750.0 mm × - Weight: 2303.0 kg State: good At local norms: --------- |
