Milling and grinding units Homag / Arminius
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Berlin | Berlin |
| Category: | Milling Machine Accessories |
| Manufacturer: | Arminius |
| Model: | unbekannt |

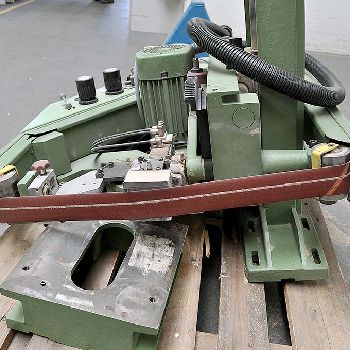

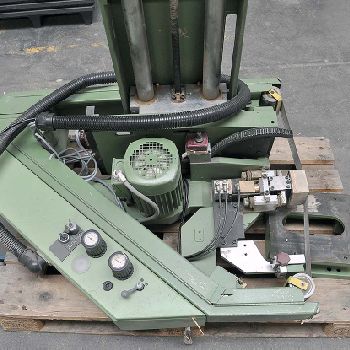

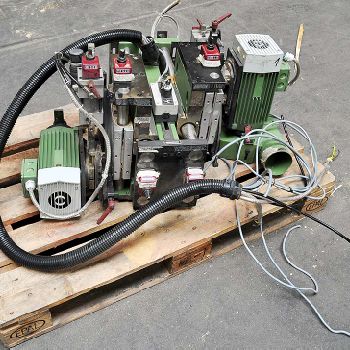

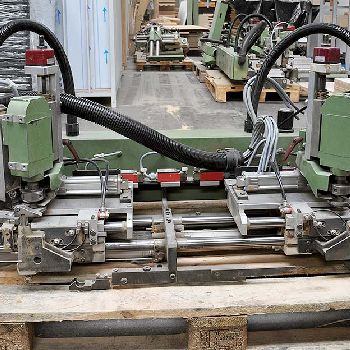

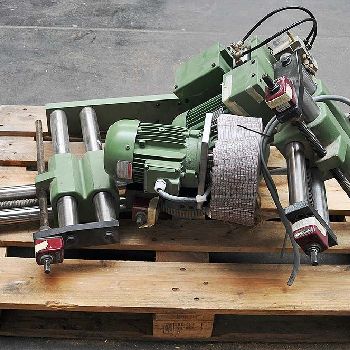

| Description: | Available units: (1) corner trimming unit ARMINIUS WF42: max. Workpiece thickness: 40mm, workpiece overhang: 70mm, max. Corner radius: 20mm, max. Feed rate: 22m / min (2) Profile grinding unit ARMINIUS DS 40: Spindle speed: 1500 rpm, Spindle diameter: 28mm, Tool diameter: 200mm, Swing angle: 130 ° (3) Profile belt grinding unit ARMINIUS PS22: max. Workpiece thickness: 60mm, belt speed: 12m / s, swivel range: -45 ° to 100 °, belt length: 2900mm, belt width: 30-80mm, exhaust power: 800m³ / h (4) Universal milling unit HOMAG UF11 / UF 12: speed: 9000 / min, Shaft dimension: 30x68mm, tool diameter: 150-180mm. |
