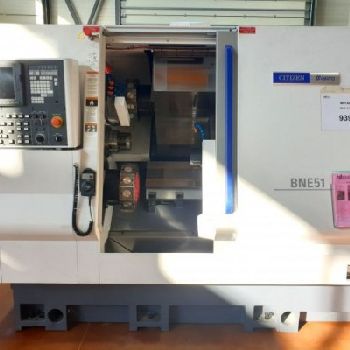

Miyano BNE 51 MSY
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France | Contamine-sur-Arve | Auvergne-Rhône-Alpes |
| Category: | CNC Lathes |
| Manufacturer: | Miyano |
| Model: | BNE 51 MSY |
| Year of Make: | 2018 |
| Description: | - Number of spindles : 2 - Number of axes : 9 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-6" - Spindle power : 15 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 7.5 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - C axis indexing precision : 0.001 [°] - Travel : 155/450 [mm] - Rapid traverse rate : 20 [m/min] - Milling spindle UPPER RIGHT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 195/380 [mm] - Y stroke : +/-40 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4 [kW] LOWER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 195/175 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 44 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2725 |
RD Machines Outils RD MACHINES OUTILS77 ALLEE DE L'INDUSTRIE - AUX TUILERIESF-74130 CONTAMINE SUR ARVEFrance SHOW | |
