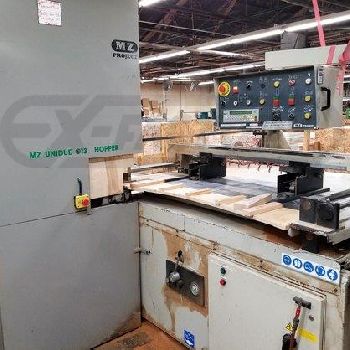

MZ-PROJECT UNIDUE HOPPER 013
$ 12,500
| Type: | Buy-It-Now |
| Location: | United States |
| Category: | Belt Saws |
| Manufacturer: | MZ-PROJECT |
| Model: | UNIDUE HOPPER 013 |
| Year of Make: | 1998 |

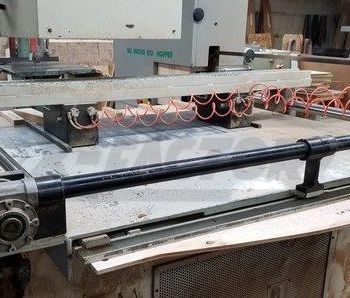

| Description: | MZ PROJECT UNIDUE HOPPER 013 Template Band saw \n\n-- Template Band Saw with 33" throat cap., 15" under guide, 33" dia. wheels, 10 HP belt drive motor for optimum blade speed, 1/8" - 1 3/4" blade width cap. \n\n-- 56" Wide x 84" long table; entire table with 3" in-and-out travel for tracing patterns. Also includes CNC controlled 50" in-and-out clamp movement on top of table; \n\n-- 13" wide x 91" long return conveyor to operator. \n\n-- Operation: The machine uses a simple template made of laminated wood. The template is located at the rear of the machine. (2) Templates are accepted & independently controlled by the machine: (1) For the outside cut; the 2nd for the final cut in case the workshape is not symmetrical. \n\n-- The template copying device is controlled by pneumatic cylinder, which positions the tracing head into position on the template and withdraws the head when the traveling table (controlled by hydraulic cylinder) returns to the rear start position. \n\n-- The traci |
