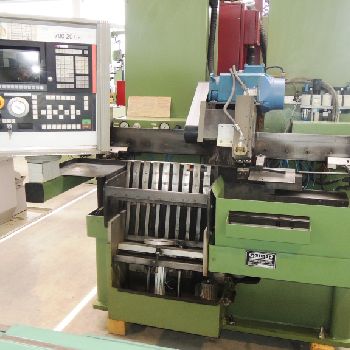

GEIGER HM cutting machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Metzingen | Baden-Württemberg |
| Category: | Further Grinding Machines |
| Manufacturer: | Geiger |
| Model: | HM-Trennmaschine |
| Year of Make: | 1997 |
| Description: | Available from stock, errors and prior sale reserved, noncommittal offer: G E I G E R CNC controlled and fully automatic cutting machine for HartmetallStäbeType ohneBaujahr 1997 9706 151This machine is used exclusively for cutting vonrunden carbide rods up to max. 500 mm length with an outer Ø up to 25.4 mm.NormalØ with serial cuts 20 mm, above 20 mm only single cuts.The machine can be operated in both single-cut and series production.The raw material is placed in a storage container and then introduced via a separation in the Nachführrinne and over After the cutting depth has been reached, the rod is retracted in rapid traverse, the rod and the section are unclamped. Cut-off cuts, remnants and the parts are measured sorted accordingly.Technical data: Max. MaterialØ 3 20 or max. 24 mmMax. Bar length 500 mmChaping length adjustable 3 - 160 mmDisplacement sheetØ 250 mmRaw partsMagazine: Capacity at Ø 4mm approx. 500 barsCapacity at Ø 20 mm approx. 25 BarsSpindle drive / total drive 7,5 k |
Hans-Jürgen Geiger Maschinen-Vertrieb GmbH James-Watt-Straße 12D-72555 MetzingenGermany SHOW |
