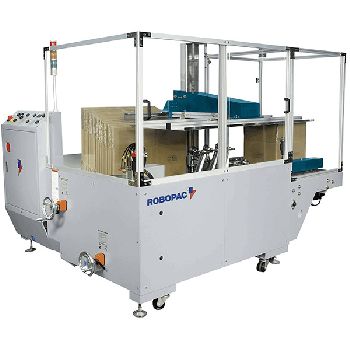

Superbox 545 Case packer





$ 28,751
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Packaging Machines |
| Manufacturer: | Robopac |
| Model: | Superbox 545 |
| Year of Make: | 2019 |
| Description: | Formation material: cardboard boxes |Productive Capacity: 720 pieces / hour depending on the format.|Maximum working dimensions - L (mm) 570 |Maximum working dimensions - M (mm) 410 |Maximum working dimensions - H (mm) 500 |Minimum working dimensions - L (mm) 250 |Minimum working dimensions - M (mm) 170 |Minimum working dimensions - H (mm) 90 |The machine is mainly composed of:|Metallic carpentry structure carefully treated. |Deposit boxes-cartons 50/60 boxes. |Cardboard extraction and opening unit, with patented system. |Trailer unit cartons. |Opening boxes and closing flaps by pneumatic drive. |Automatic closing unit of the cardboard bottom with adhesive tape. |Anti-accident protections possibility of opening according to safety regulations. |Change of format by crank handle and millimeter stops. |Drag group with side conveyor belts (H = 60 mm.) With fixed speed. |Automatic stop when the cardboard store is empty |PLC: Mitsubishi |Supply voltage 400 V. 3 Ph - 50 HZ |
| Technical Specifications: | Output: 12 /min Length max of the case: 570.0 mm Length min of the case: 250.0 mm Width max of the case: 410.0 mm Width min of the case: 170.0 mm Height max of the case: 500.0 mm Height min of the case: 90.0 mm Length x width x height: 2276.0 mm × 1652.0 mm × 1660.0 mm Weight: 700.0 kg State: good At local norms: yes Status: visible |
